Side Entry Female RJ 45 Network Jack Halogen - Free Phosphor Bronze Material PBT Housing

Dongguan Heling Electronic Co., Ltd.
Contact Now

Side Entry Female RJ 45 Network Jack Halogen - Free Phosphor Bronze Material PBT Housing

Brand Name : DGHELING

Model Number : MJ1B-B211-RSL13T003-2

Certification : ISO9001 , RoHS , UL , CE , REACH

Place of Origin : China

MOQ : 3000

Price : Preferential & Competitive

Payment Terms : T / T, Paypal

Supply Ability : 1,000K Pieces Per Month

Delivery Time : Stock or 2 weeks

Packaging Details : Tray / Tape & Reel as your request

Series : RJ45 Female Pcb Connector

Orientation : Right Angle / Side Entry

Shielded : YES

Port Configuration : 1 x 1

Housing Material : PBT

Packing Method : Tray , Tape & Reel as your request

OEM/ODM : YES

EU RoHS compliant : YES, RoHS and Halogen-Free

Contact Now

Shielded Side Entry RJ45 Female Connector with LED and EMI Finger

General :

Model Number : MJ1B-B211-RSL13T003-2

Single port RJ45 Female Connector, Shielded with Integrated 10 / 100 base - T magnetics

8P8C with EMI finger

With LED indicator ( bottom left : green and bottom right : yellow )

Physical :

Numbers of ports : 1 x 1

Orientation : Right Angle ( Side Entry )

Material :

Metal : Phosphor bronze

Resin : PBT

Plating Mating : Gold over Nickel

Plating Terminal : Gold Flash

Plating min-mating: 1 u inch / 3 u inch / 6 u inch / 15 u inch / 30 u inch / 50 u inch

Documents:

*** CLICK HERE TO DOWNLOAD THE DRAWING

Electrical characteristics :

Series RJ45 Female Connector
Part Number MJ1B-B211-RSL13T003-2
Current Rating 1.5 AMPS
Voltage Rating 125 VAC
Insulation Resistance

500MΩ MINI

Withstand Voltage AC 1000V RMS 50HZ OR 60HZ PER MIN
Durability 750 MATING CYCLES MINI

Our Customer :

We supply RJ45 Female Connector for Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi and so on.

Our RJ45 Female connectors are sold to more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.

Our Advantage:

1 > Customer First , Superior Quality

Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.

2 > 6 Years Warranty

6 years warranty for all our RJ45 Female Connectors.

3 > 24-hour on-line service

All enquiries will be replied within 24 hours in working day.

FAQ

1. How long can I expect to get the sample and mass order.

Re : For sample order, the delivery time is in 2 weeks; and for mass order, the delivery time is in 3-4 weeks. It depends on your quantity and our inventory.

2. Can you print our customized logo?

Re : Yes, of course. We have a professional design team and the complete production lines. Just provide the details requirement to us, we will be happy to customize your logo and print it on your order.

3. What is your payment terms?

Re : T/T 30% deposit with order and balance paid before shipment; Paypal are OK, and L /C is acceptable when total amount is more than US$10,000.

4. How can I order?

Re :

1. Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.

2. Confirm the drawings and order, we will send you a proforma invoice for you to make the payment.

3. Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.

4. Ship your goods by DHL/FedEx/UPS, as your request.

5. Follow-up client usage status regularly and after sales service

5. If quality issues happened, what should I do?

Re: Just email us or contact us about your complaints problems, we will forward it to our related departments and come back to you with a satisfied solution within 24 hours.

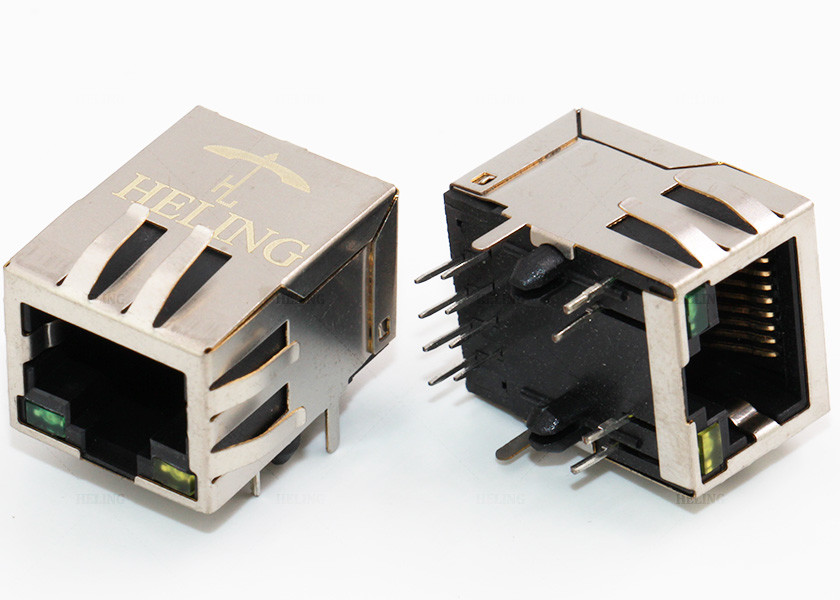

Product Images :

Side Entry Female RJ 45 Network Jack Halogen - Free Phosphor Bronze Material PBT HousingSide Entry Female RJ 45 Network Jack Halogen - Free Phosphor Bronze Material PBT HousingSide Entry Female RJ 45 Network Jack Halogen - Free Phosphor Bronze Material PBT Housing
