Unshielded Ganged RJ45 Female Connector 4 Port ( 1 x 4 ) Right Angle
Description
- Part Number : MJ5608-G014-HRN2
- Product Family : 4 Ports 1 x 4 RJ45 Female Connector
- Overview : 8P8C 1 x 4 Ports Unshielded RJ45 Modular Jack
Right Angle ( Side Entry ), Tab down , 11.5mm Height , Cat 5
- Applications : 1 , Networking and telecom
2 , Office and home equipment
3 , Consumer Goods
Documents
*** CLICK HERE TO DOWNLOAD THE DRAWING
Physical Specification
| Color-Resin: | Grey |
| Durability(mating cycles max): | 750 |
| Material | Metal: | Phosphor bronze |
| Resin: | Liquid crystal polymer |
| Plating mating: | Gold over Nickel |
| Plating termination: | Gold Flash |
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional |
| Net Weight: | TBA |
| PCB: | FR4 |
| PCB locator: | Yes |
| PCB retention: | None |
| PCB retaining post: | T-post |
| PCB Thickness- Recommended | 1.6mm |
| Packaging type: | Tray |
| Temperature range: | -40℃-70℃ |
Why Choose us?
Amphenol , Huawei , LG , Sumsung , Foxconn , Skyworth , Xiaomi are our customers.
Our RJ45 female connector are widely used for Telecom, Networking, Security System, smart home, Multi-Media equipment and POS Terminals.
We supply RJ45 Female connectors for more than 800 customers in 63 countries; what’s more, HELING has provided over 1000 models of RJ45 Female Connectors for our customers.
Product Range:
- Offset/Overhangs PCB RJ45 Jack
- 100/1000 base - T Integrated Magnetics RJ45 modular jacks
- Low Profile SMT RJ45 Female Connector
- Low Profile RJ45 Through Hole Connector
- Single Port RJ45 Female Connector
- 1xN Multi-port RJ45 Female Connector
- 2xN Multi-port RJ45 Female Connector
- PoE RJ45 Connector
- Modular jacks + USB/HDMI
- Ethernet LAN Transformer
Welcome OEM/ODM orders.
Our advantage:
1 > Customer First , Superior Quality
Customer First , Superior Quality is our culture, we always believe that our own success is inextricably linked to our finest product quality and our customer's success.
2 > 6 Years Warranty
6 years warranty for all our RJ45 Female Connectors.
3 > 24-hour on-line service
All enquiries will be replied within 24 hours in working day.
How can I order ?
1, Choose the RJ45 Female Connector you need and send us an inquiry, we will reply in 24 hours.
2, Confirm the drawings and order, we will send you a proforma invoice for you to make the payment(via T/T, Paypal and L/C is acceptable when total amount is more than US$10,000.)
3, Once we confirm your payment, your order will be started and finished with 3-4 weeks depends on your quantity.
4, Ship your goods by DHL/FedEx/UPS, as your request.
5, Follow-up client usage status regularly and after sales service.
FAQ:
1 , How long can I expect to get the sample and mass order.
For sample order, the delivery time is in 2-3 weeks, and for mass order, the delivery time is in 3-4 weeks.
2 , What is your payment terms?
B.30% deposit before production and 70% payment before shipment. T/T, Western Union or Paypal are acceptable. All banking charges outside China are on buyers.
3 , How do you ship the goods?
Usually the goods are shipped by FedEx, DHL or UPS. If you have any express account, please let us know.
4 , Can you do our designs?
Yes, of course. We have a professional design team and the complete production lines. Just provide the details to us, we will be happy to help you out.

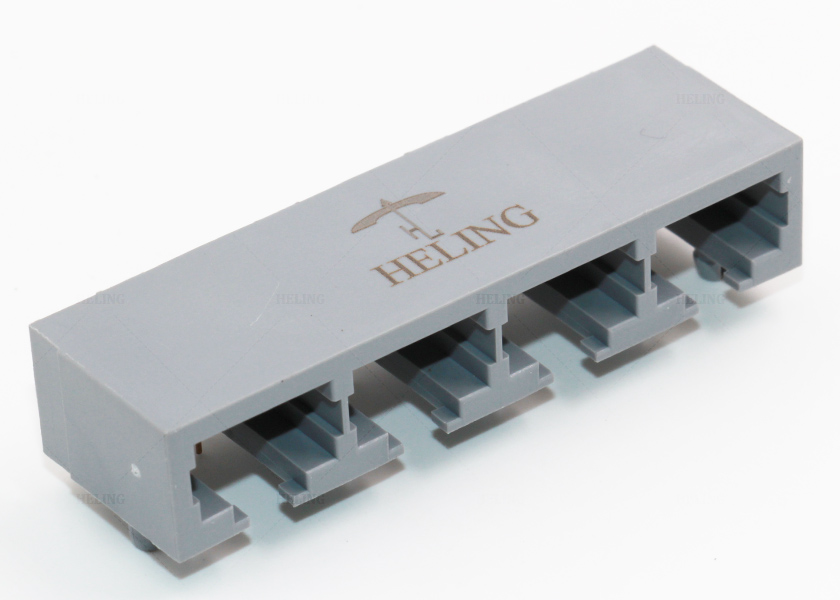

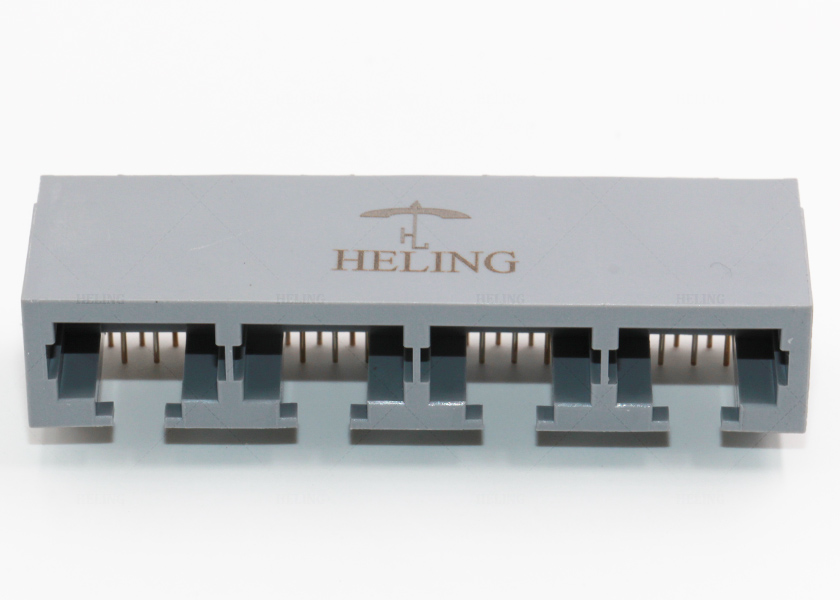

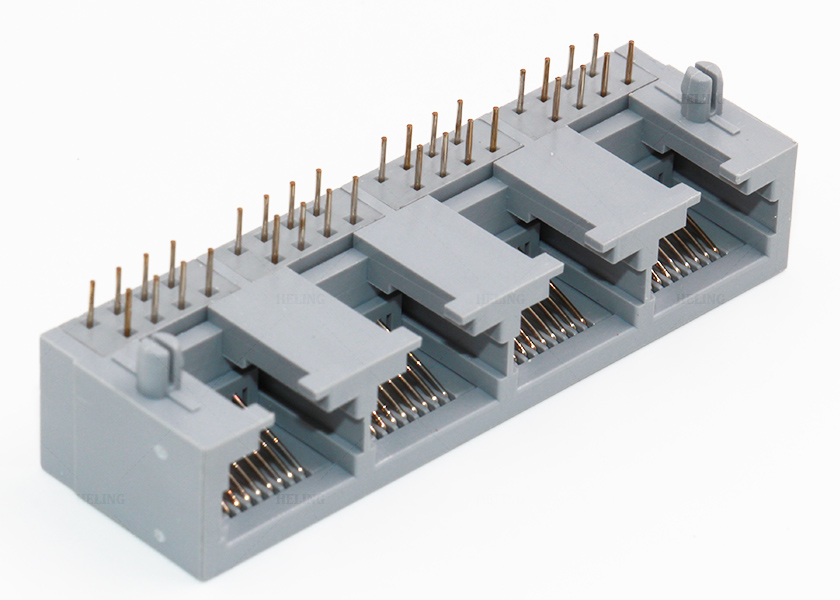

Product Image :
Product Tags:
|
|
Unshielded Ganged RJ45 Female Connector , Gray Housing 4 Port Rj45 8 Pin Connector Images
|
